High Speed Double Servo Series — 4 to 12 Nozzles

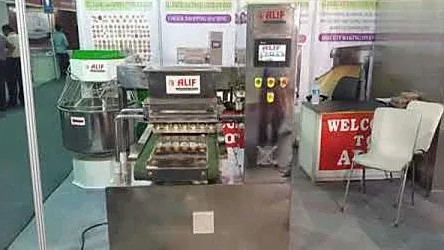

Cookie Dropping Machine Manufacturer in India
Alif Ovens builds servo-controlled cookie dropping machines (also called biscuit dropping machines) in eight configurations from 4 to 12 nozzles, matching 10" to 32" tray widths and producing up to 350 kg of cookies per hour.
- Nozzles
- 4 to 12
- Output
- Up to 350 kg / hour
- Control
- 7" touchscreen, servo
- HS code
- 8438.10
Features — Double Servo Series
Servo-controlled forming for consistent output
- 7" Colour TFT touch screen with large recipe storage
- Available in 4 to 12 nozzles for 10" to 32" tray widths
- Servo geared motors for nozzle, wire cut frame and table height
- Table height adjustment fully automatic
- Multi-layered and conical shaped cookies; hole-in-centre for jam
- Consistent drop weight and shape across all production runs
- 60 die designs: wire-cut, stationary drop, rotary drop and long drop
- Independent servo and geared motors for every function
- Compatible with rack oven trays and travelling oven belt widths
Application: Used for forming cookies, biscuits, jam-centre products, and other shaped bakery items.
| Nozzles | Tray Width | Max Output / hr | Weight | Dimensions (L×W×H) | Power |
|---|---|---|---|---|---|
| 4 | 10" / 250mm | 40–50 kg | 525 kg | 50×52×66 inch | 2.0 HP |
| 5 | 12" / 300mm | 90–100 kg | 550 kg | 50×53×66 inch | 2.0 HP |
| 6 | 16" / 400mm | 140–150 kg | 675 kg | 58×53×66 inch | 2.5 HP |
| 7 | 18" / 450mm | 170–210 kg | 700 kg | 58×53×66 inch | 3.0 HP |
| 8 | 20" / 500mm | 190–240 kg | 700 kg | 31.5×41×65 inch | 3.5 HP |
| 9 | 24" / 600mm | 215–260 kg | 825 kg | 31.5×47×65 inch | 3.5 HP |
| 10 | 27" / 680mm | 240–280 kg | 825 kg | 31.5×47×65 inch | 3.5 HP |
| 12 | 32" / 800mm | 340–350 kg | 1200 kg | 31.5×57×65 inch | 4.5 HP |
Related Buying Guides
See It Running
Buyer questions
What is the price of a cookie dropping machine?
The price depends mainly on the number of nozzles (4 to 12), which sets the tray width and output, plus options such as wire-cut and multi-layer depositing. Share your products, daily output and fuel or power supply on WhatsApp (alifovens.com/whatsapp) or at alif@alifovens.com and Alif Ovens sends a written quotation, usually within 24–48 business hours.
How many nozzles do I need?
Choose the nozzle count to fill your tray or oven belt width: 4 nozzles for 10" trays (40–50 kg/hour) up to 12 nozzles for 32" trays (340–350 kg/hour). Match it to your rotary rack oven tray size or tunnel oven belt width.
What cookie shapes and dies are available?
Alif offers 60 die designs in four families: wire-cut (AO-WC), stationary drop (AO-SD), rotary drop (AO-RD) and long drop / rotary long drop (AO-LD). Together they cover plain, rosette, multi-layer, conical and jam-centre cookies. Die references are shown in the catalogue.
Is a cookie dropping machine the same as a biscuit dropping machine?
Yes. Both names describe a depositor that extrudes soft dough through nozzles onto trays or an oven belt, forming cookies in consistent shapes and weights, including rosettes, multi-layer and jam-centre products.
What is the HSN code for a cookie dropping machine?
Cookie and biscuit forming machines are generally classified under HS/HSN code 8438.10 (bakery machinery). Confirm the final code with your customs broker.
Configure your cookie dropping line
Tell us your tray width, daily output target, and product type and we'll recommend the right nozzle configuration.
